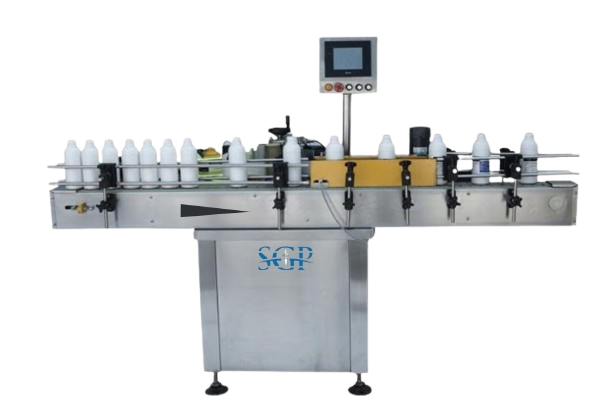

AUTOMATIC VIAL STICKER LABELLING MACHINE
Latest sophisticated PLC /Microprocessor controlled Label Dispensing system with user friendly Sensing interface for Label and Product with choice of Stepper or Servo Drive. The Machine is suitable for Labelling on Round Bottle, Jars and other round objects and is capable of Labelling up to 150 containers per minute depending on products diameter and label size.
Salient Features :
- Suitable for Overlap Labelling.
- “No Container – No Label” – sensor provided to avoid wastage of labels.
- PLC based operation and VFD for speed control.
- Digital Counter provided for total labeled containers.
- An inbuilt real – time speed indicator will show actual speed of machine.
- Label Roll End – machine stop system provided.
- No need of any Change Parts during changeover of size.
- In compliance with cGMP
Technical Specification
| Production Rate | 50 to 150 containers/min. depending up on label length & container dia. |
| Dispensing Speed | 5 mtr/ minute |
| Power Specification | 0.5 H.P, 220 Volts, 1 Phase, 50 Hz. |
| Container Dia | 16 mm to 80 mm |
| Label size | Length : 20 mm to unlimited |
| Width :10 mm to 90 mm | |
| Technical details, specification & designs are subject to change without any prior notice. | |
