What is the lead time for the SEMI TYPE SINGLE HEAD AUGER TYPE POWDER FILLING MACHINE?

Standard configurations ship in 6–10 weeks from purchase order. Customised builds: 12–18 weeks depending on scope.

Do you provide installation and validation support?

Yes — FAT at our Ahmedabad floor, plus on-site SAT, operator training, and IQ/OQ execution at your facility.

Can the machine be customised for our product?

Yes. Over 60% of our builds include customisation — from contact-part geometry to special control logic. Share a URS for a 48-hour response.

What is the warranty on this machine?

24-month standard warranty on parts and workmanship, plus regional spare-parts stocking and remote diagnostics.

Kailash Machine Tools Since 1989

Get Quote

SEMI TYPE SINGLE HEAD AUGER TYPE POWDER FILLING MACHINE

Semi type single head auger type powder filling machine for precise powder filling in containers and bags, with semi-automatic operation, 1% accuracy, and 415V three phase power.

Key Specifications

Phase: Three Phase
Power: 2 KW
Output: 8 to 12
Voltage: 415V
Accuracy: 1%
Capacity: Up to 2 bags/min
Machine Type: Semi Type Single Head Auger Type Powder Filling Machine
Weighing Range: 5Kg-25Kg & 10Kg-100Kg
Available Sizes: 12 inches, 16 inches, 18 inches, 20 inches, 24 inches
Weighing System: Gross Weighing
Automation Grade: Semi-Automatic
Suitable Material: Powders
Number of Filling Heads: 1

Request Quotation Chat on WhatsApp

cGMP compliant build

SS 316L contact parts

IQ / OQ support

24-month warranty

The auger filler machine is used for powder stuffing and controlled powder filling applications. This semi type single head auger type powder filling machine is designed to deliver precise target weight filling for a range of powder products in containers and bags.

Auger filler machines are suitable for handling both free-flowing and non-free-flowing powders. The auger filler is widely used where consistent and accurate powder dosing is required.

**Types of Auger Filler** - Semi Automatic Auger Filler Machine - Automatic Auger Filler Machine

**Available Sizes** - 12 inches - 16 inches - 18 inches - 20 inches - 24 inches

**Product Details** - Number of Filling Heads: 1 - Capacity: Up to 2 bags/min - Output: 8 to 12 - Automation Grade: Semi-Automatic - Voltage: 415V - Phase: Three Phase - Power: 2 KW - Accuracy: 1% - Suitable Material: Powders - Weighing Range: 5Kg-25Kg & 10Kg-100Kg - Weighing System: Gross Weighing

Features

Single head auger type powder filling system
Semi-automatic operation
Precise body weight size powder filling
Suitable for free-flowing and non-free-flowing powders
1% filling accuracy
Gross weighing system
Available in 12 inch, 16 inch, 18 inch, 20 inch and 24 inch sizes

Applications

Powder filling in containersPowder filling in bagsFree-flowing powdersNon-free-flowing powders

Related machines

SGPVFR-120-240 Injectable Powder Filling

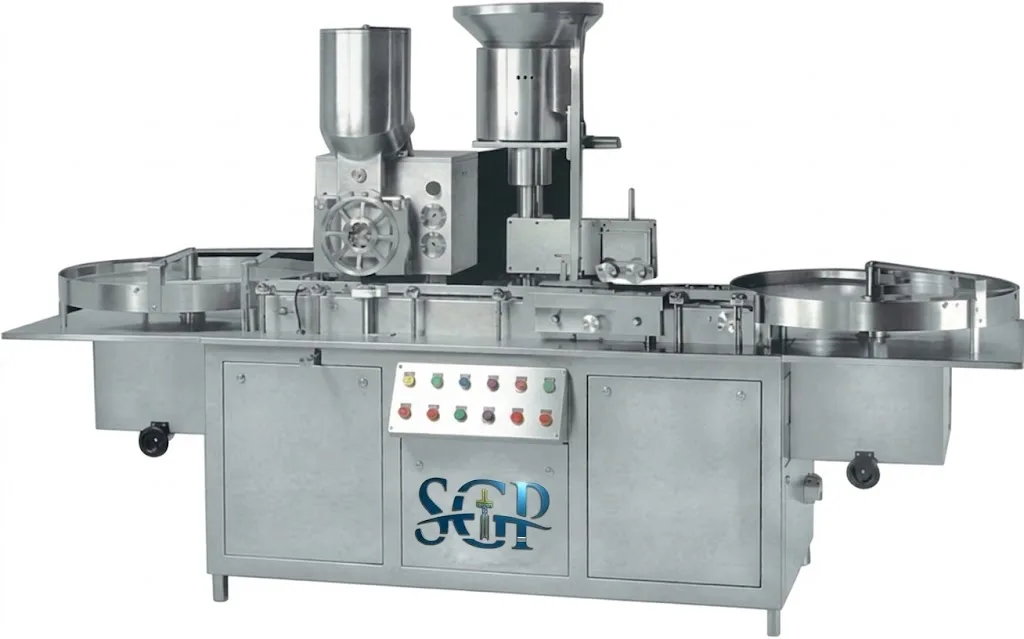

Dry Injection Powder Filling Machine

Compact cGMP dry injection powder filling machine model SGPVFR-120-240 with 30–240 vials/min filling speed, ±1% fill accuracy under controlled humidity, vacuum powder suction, and built-in rubber stoppering.

View details →

Injectable Powder Filling

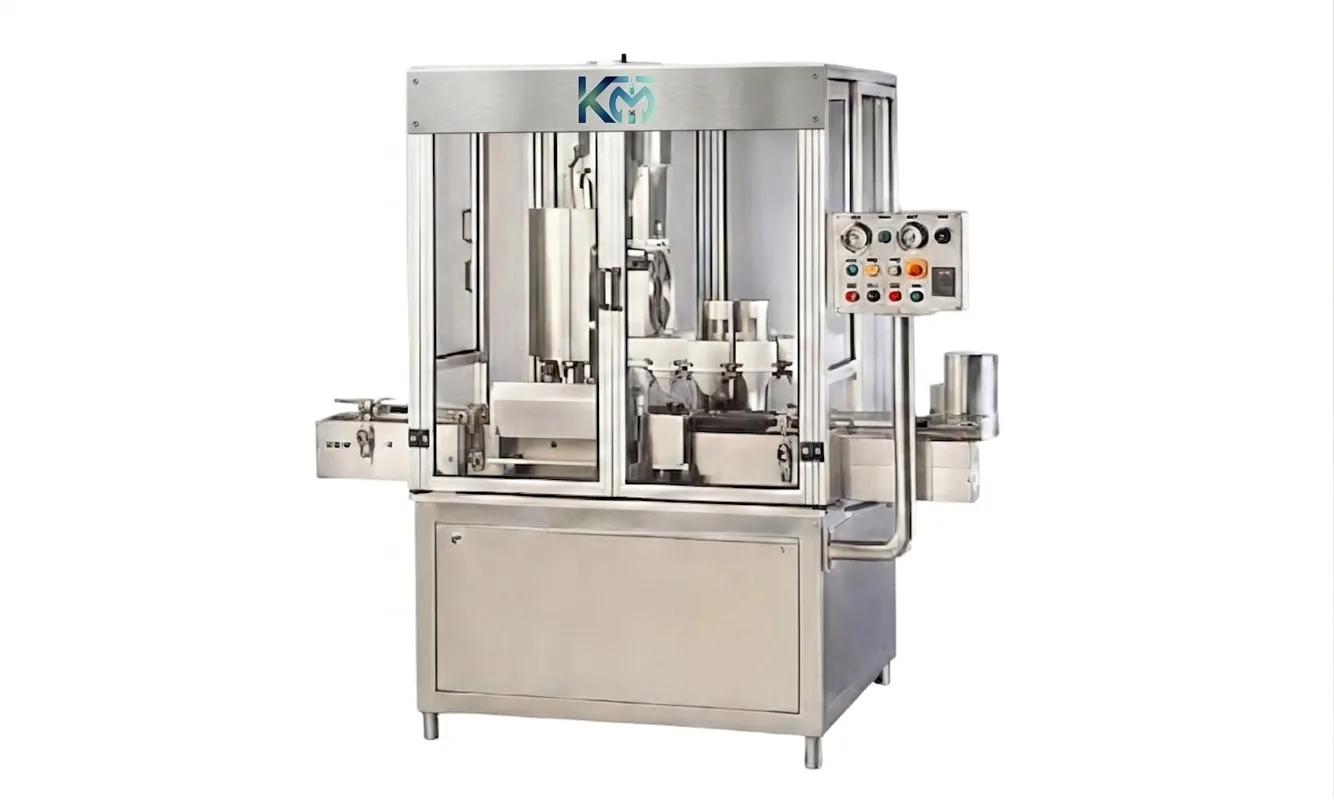

Dry Syrup Powder Filling Machine

Dry syrup powder filling machine specially designed for accurate and hygienic filling of dry syrup powders into bottles, with precise filling, high production efficiency, and contamination-free operation.

View details →

KMTPF-2 Head (60 BPM) Injectable Powder Filling

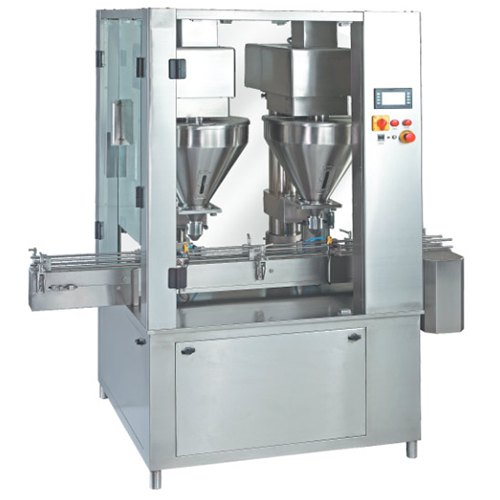

Automatic Servo Auger-Type Powder Filling Machine
